SPECIFICATIONS

Brand Name: WGWK

Certification: CE,Dot,RoHS

Connectivity: IP/Network Wired

High Definition: 8.0 Megapixels

High-concerned chemical: None

Installation: Ceiling,Embedded,Side,Normal,Wall Mounted,Stick,Pendant Mount,Vertical Pole Mount,Corner Mount

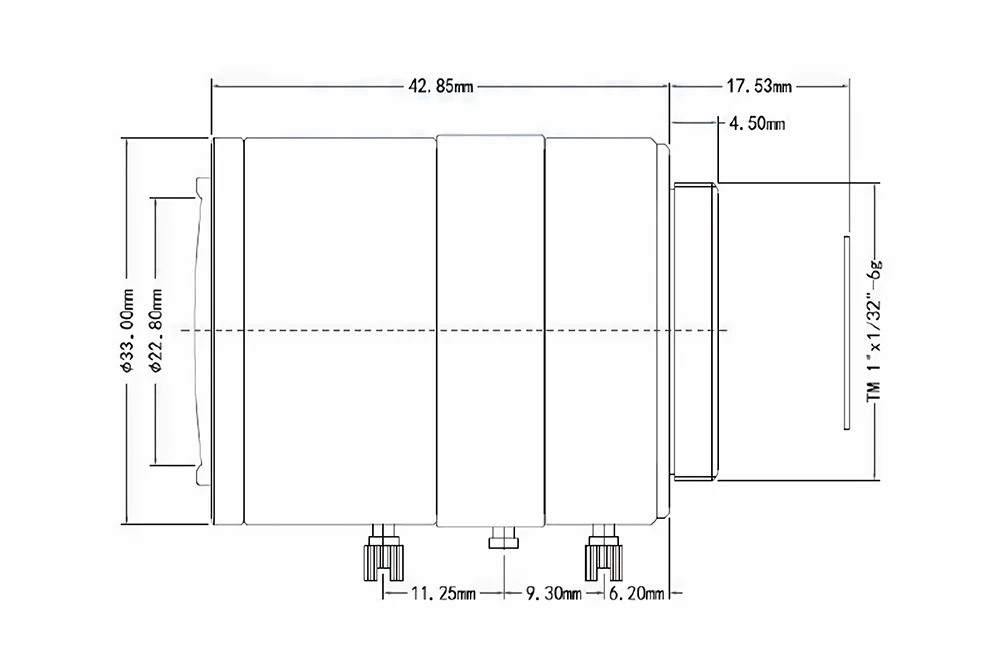

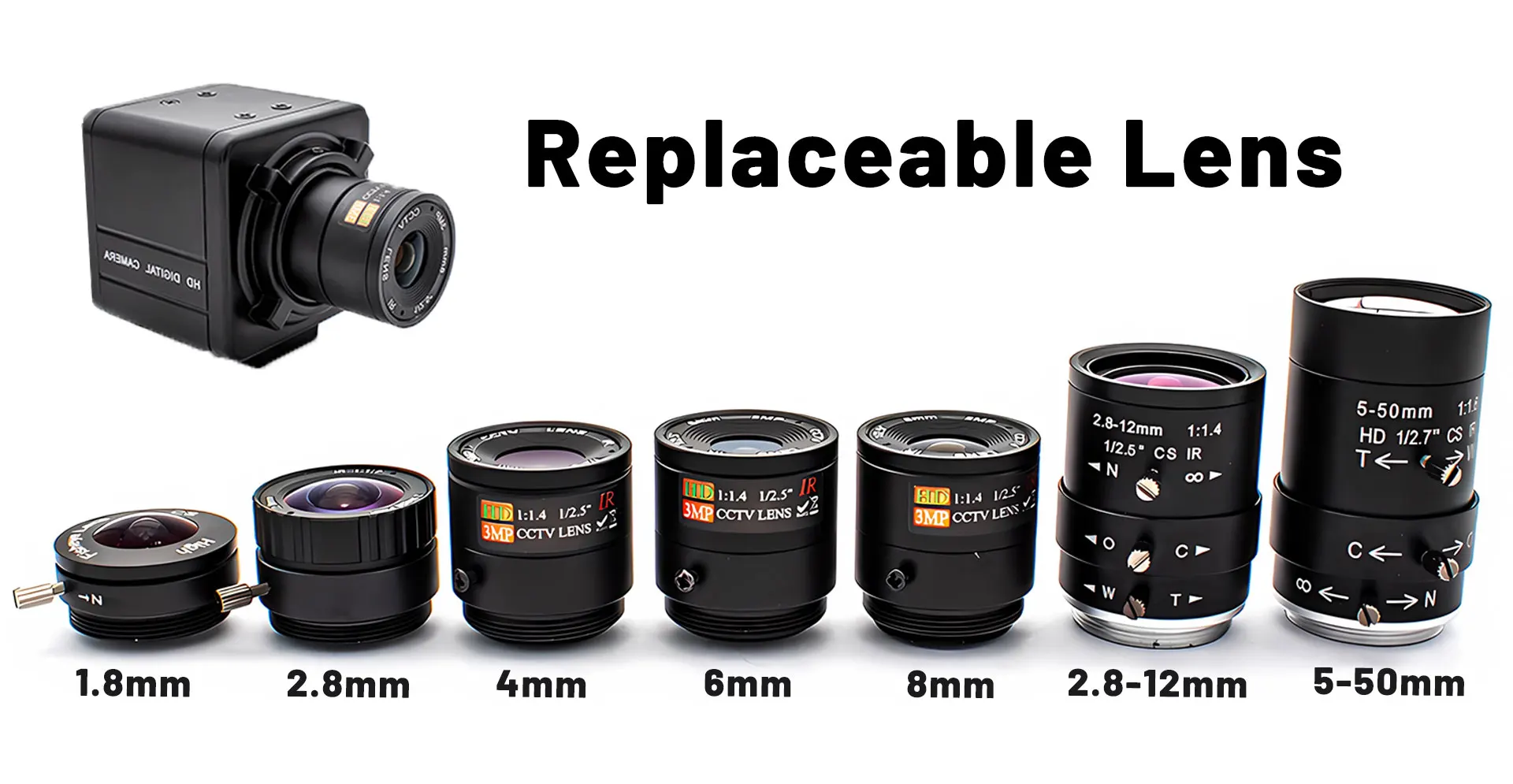

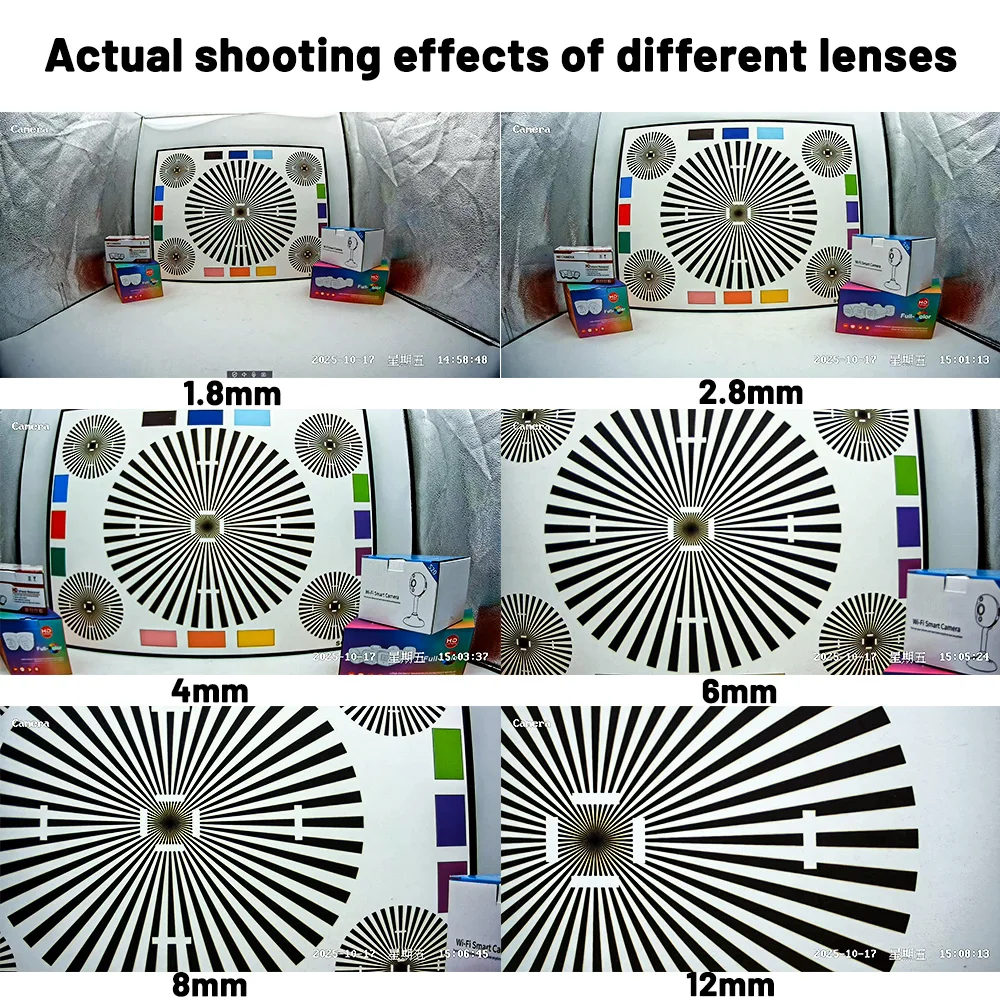

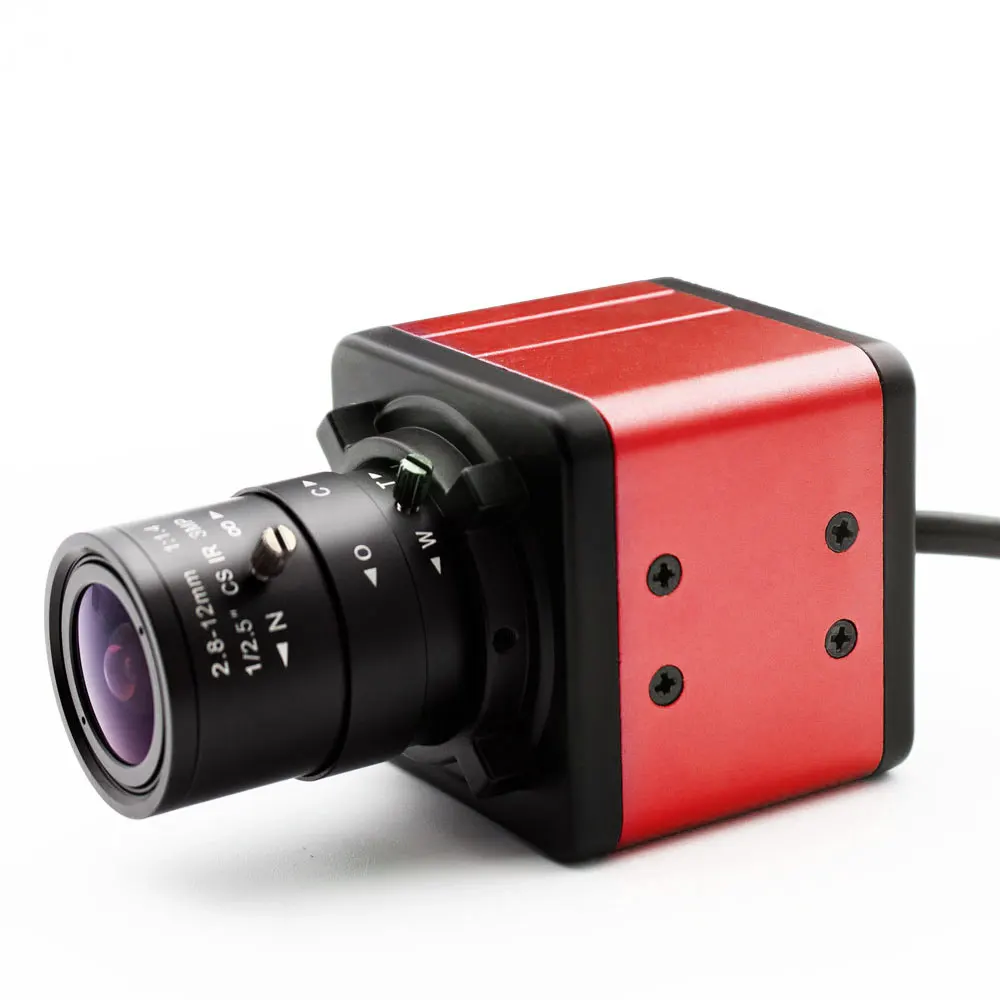

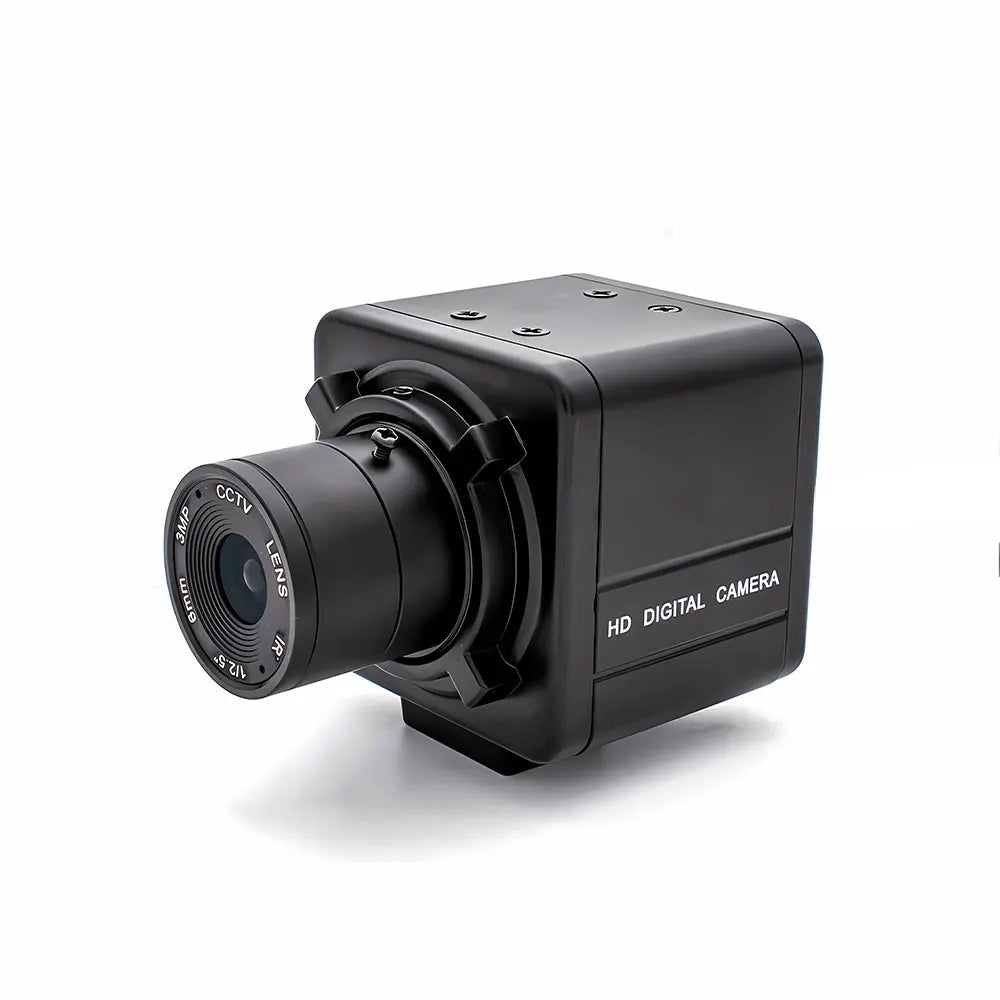

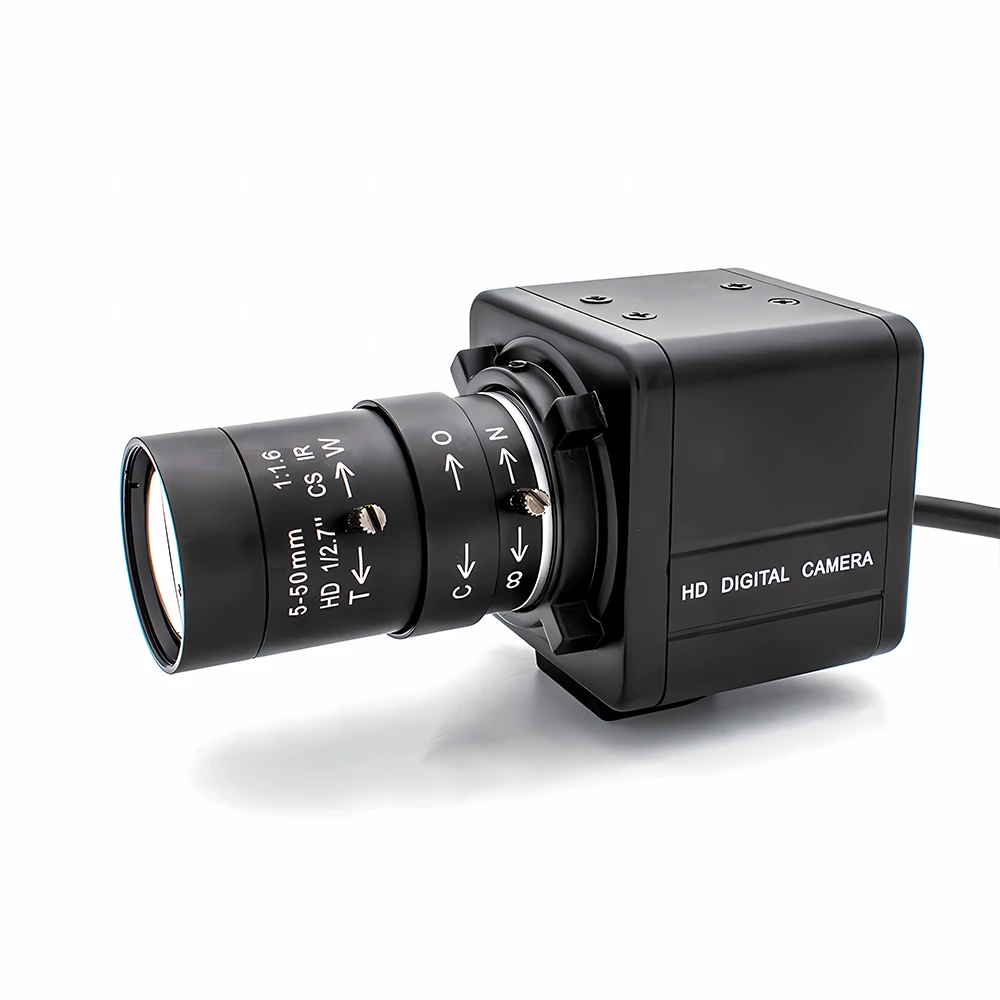

Lens (mm): 2.8-12mm,5-50mm,4mm,6mm,8mm,2.8mm,1.7mm

Lens Quantity: Single Lens

Megapixels: 8MP

Model Number: PS06-POE

Movement Range(Pan): 0°-360°

Movement Range(Tilt): -10°-180°

Optical Zoom: Others

Power Source: With Poe

Power Supply: With Poe

Scene: Indoor and outdoor

Shell Material: Metal

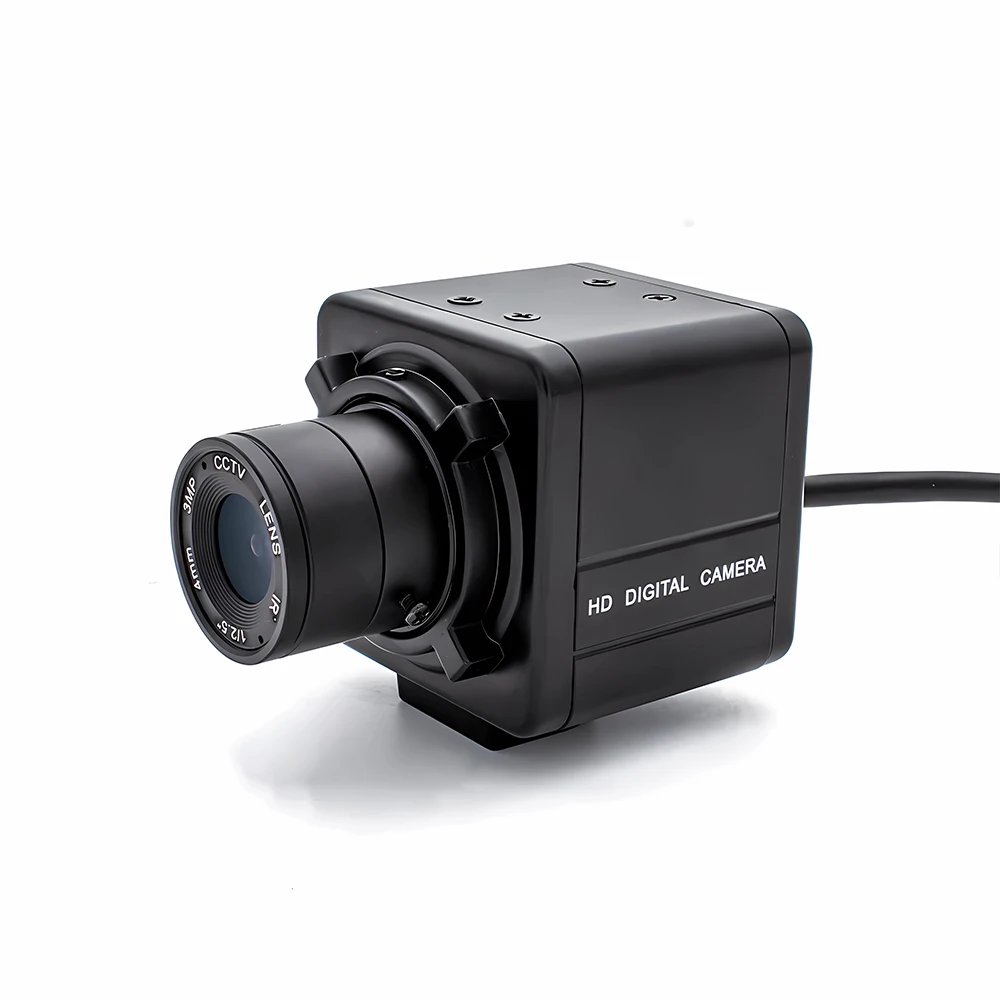

Style: Mini Camera

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003

TF Card: None

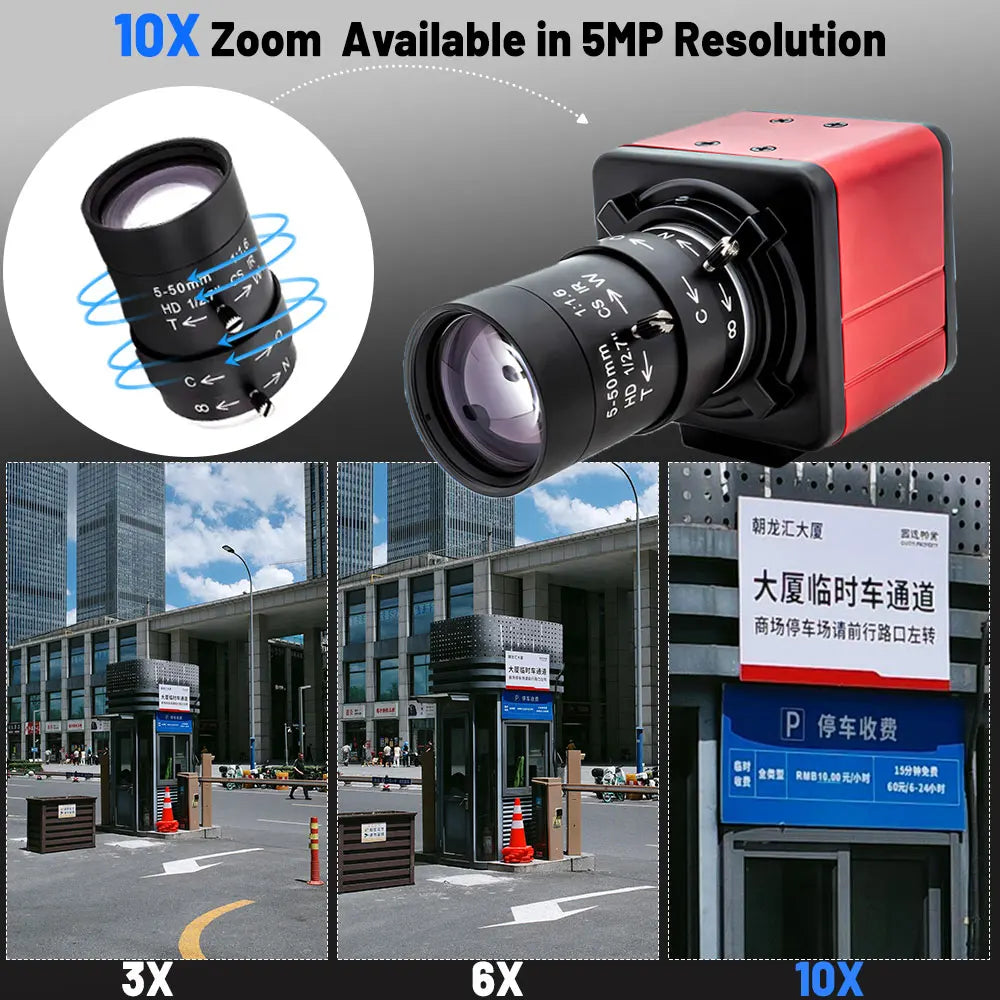

Zoom: 10X

Zoom type: Optical zoom

is_customized: Yes

3/4/5/8MP high-definition resolution, low illumination, clear and delicate images;
-Supports 2D/3D noise reduction and digital wide dynamic function;
-Advanced H.265+(compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition image quality;
-Supports ONVIF protocol and can access third-party backend/platforms;
-Support mobile monitoring (iOS, Android);
-Support multiple cloud technologies, achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions;Why H.265?

H.265 is a new video coding standard that delivers higher-quality network video with limited bandwidth, requiring only half the original bandwidth to play the same quality video.

About RTPS

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57  This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp？Main code stream

stream=1.sdp？Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port，can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp？ mainstream

stream=1.sdp？ substream

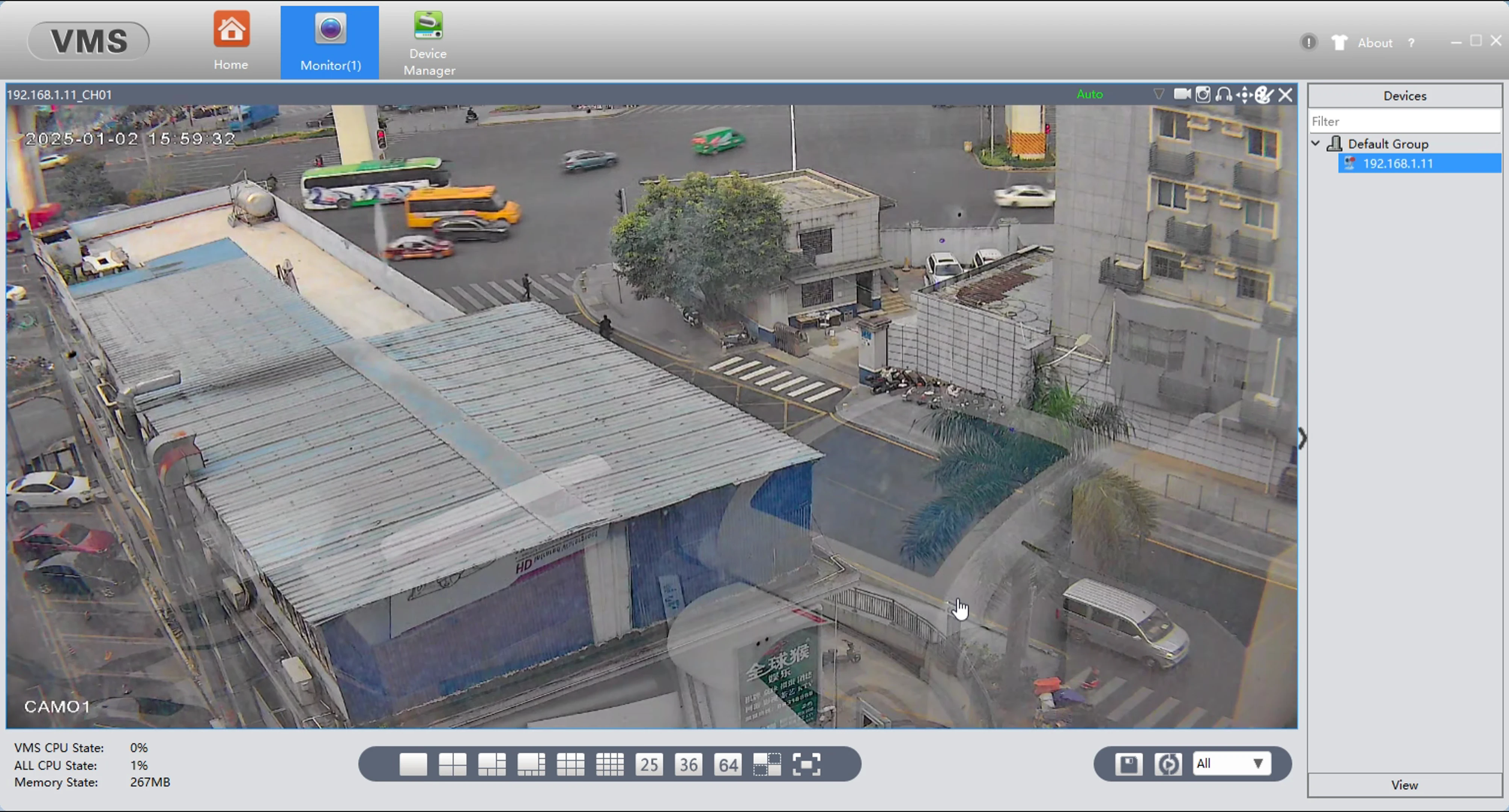

About computer operation and use

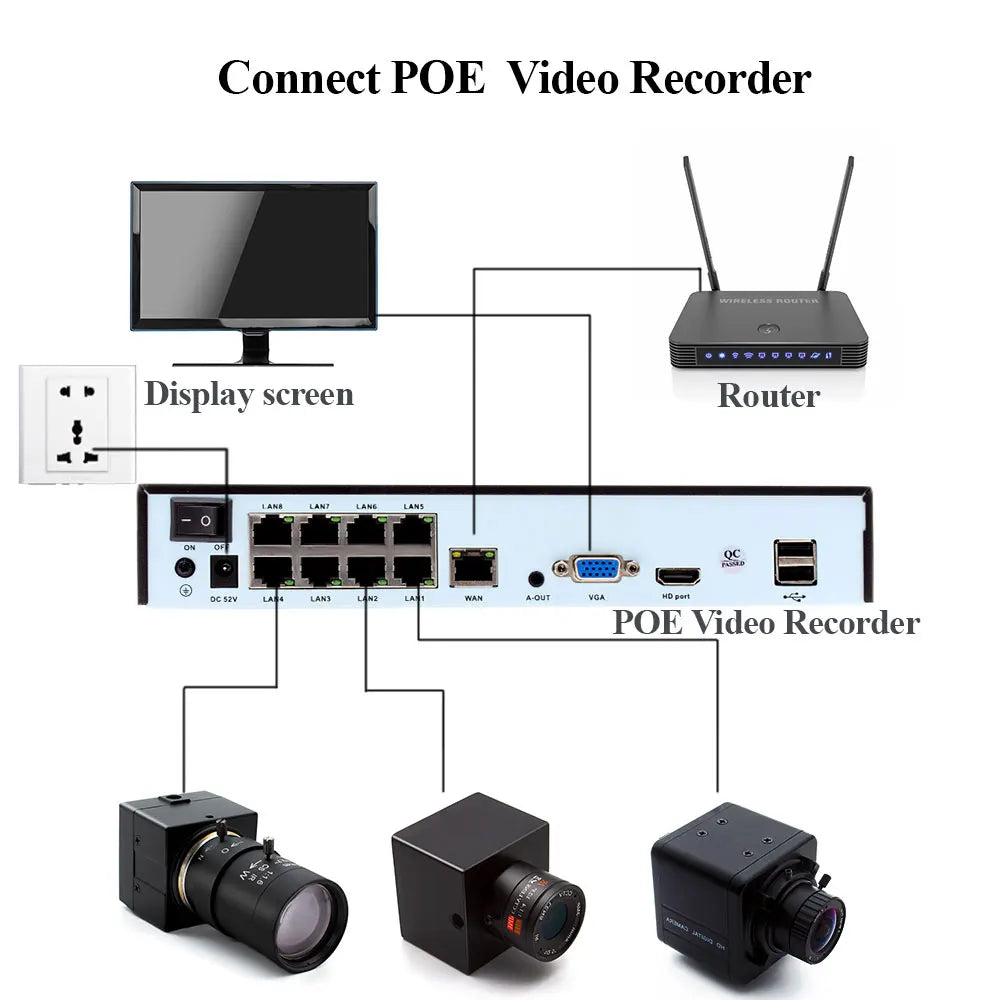

Make sure the camera is connected to the power supply and network

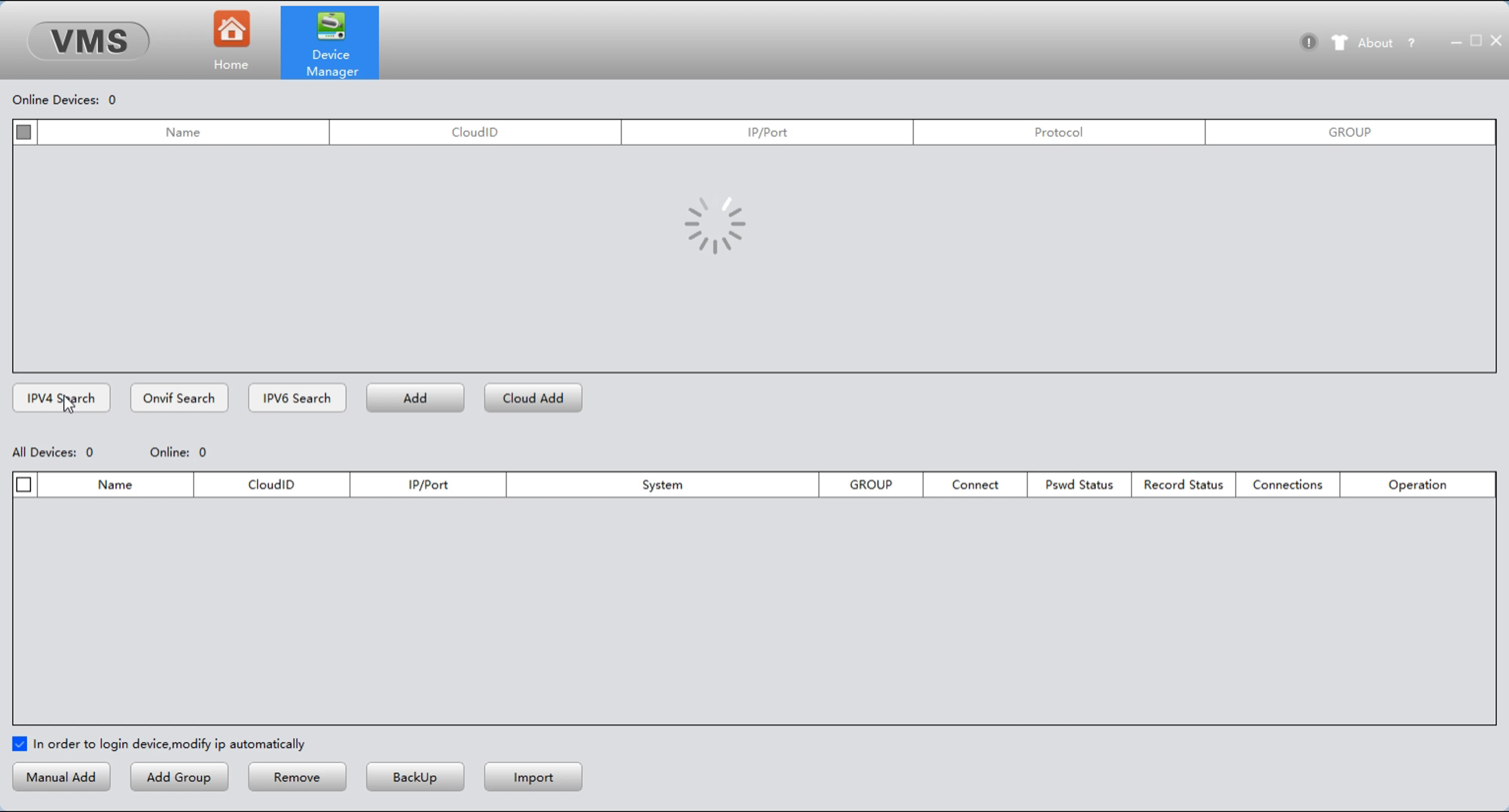

(the signal light flashes to prove that everything is normal)Step 1 : Install VMS

Download VMS

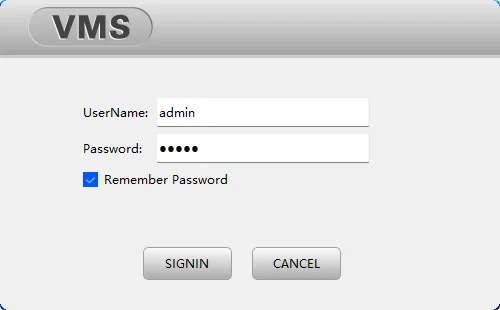

Step 2: Login VMS

UserName: admin,Password:admin

APP download: Search XMEye in Apple Store
